Revolutionizing LiDAR Techniques

Dolphin's 3D-LiDAR, the world-first long-range 3D-LiDAR powered by USB based on our innovative magnetically resonant actuator, offers wide-angle scanning function at eceptional low power cnsumption with only 2.5 Watt.

With the most strict laser eye-safety criterion and 100Klux sunlight immunity, it operates at only 5V power supply, 18,000rpm high-speed for horizonal scan, and only weights 457g, which revolutionizing 3D environment perceptions extending from ground to sky.

What Makes Dolphin LiDAR So Special?

The 3D-LiDAR equipped with the pioneering bi-directional high-speed scanning technology

A single 3D-LiDAR device, achieves 16 to 256 layers.

  • H60xV34 degrees, wide scanning FOV angle
  • 76 meters, single photon sensitivity
  • 25 meters, human outline perception
  • 2.5 Watts, ultra-low power consumption
  • 457 gram, light weight for large-scale detection
  • Class I@C6=1, the most trustable laser eye-safety criterion
  • 100Klux, robust sunlight immunity

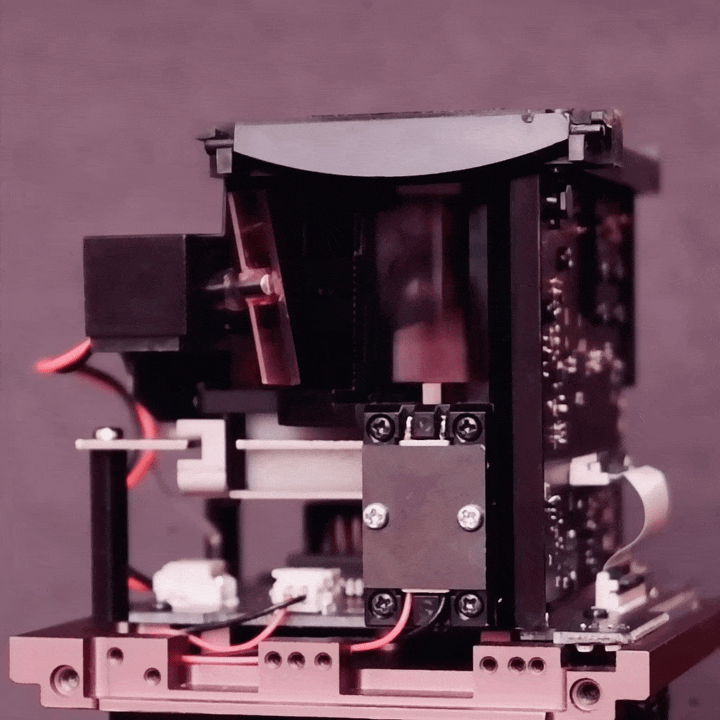

The cutting-edge magnetically resonant actuator, with extreme large-angle and high reliability

  • The breakthrough of extremely large scanning angle dramatically reduces quantity of electrical and optical components to be just 1%, making high-definition LiDAR personally affordable.
  • Stably drive a large scanning mirror at ONLY 5V power supply, but reach speed as high as 18,000rpm.
  • From proof-of-concept to manufacturing, we involved in every details of development, ensuring top-quality in mass production.

Portability, Affordability, and Univeral Industrial Design

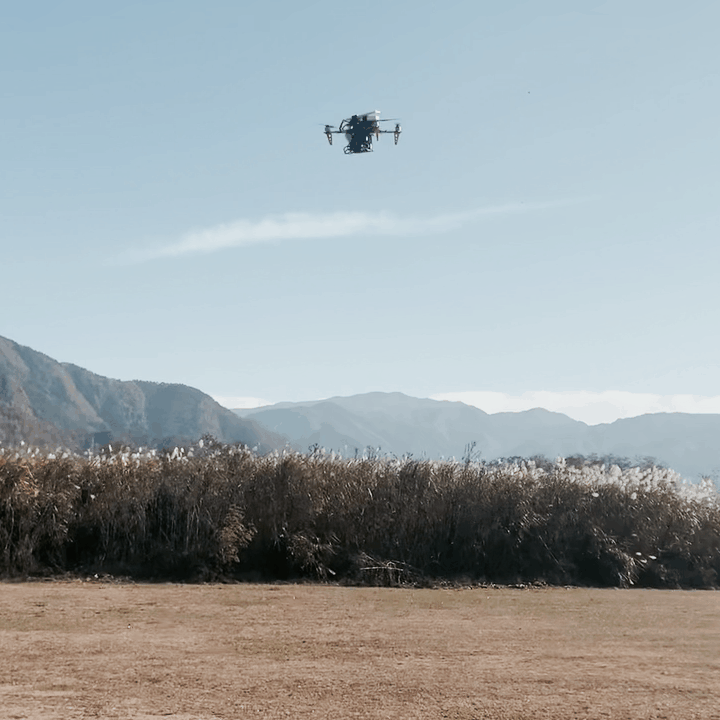

  • Introducing a true lightweight 3D-LiDAR, ideal for palm-sized drones, The LiDAR module weighs just 240g, but supports all the LiDAR functions.
  • Featured ultra-low power consumption only at 2.5Watt.
  • Our overall energy-saving product design bridges your understanding of 3D reality from ground to sky, unlocking boundless imagination.
